Software Development Case Study!

Wednesday, September 30th, 2009

Now here’s something software developers will find very useful! The following is a case study on how to use BARfly to design and implement levels for a video game.

I’ve already got several video game file types supported here. In particular, WAD (for Doom), NIB and NGR (for Nibbler), and a special Kroz level extractor from source code, which I’ve mentioned in previous entries.

But what if your level designs are more complex than linear? Whether it’s in binary or text format, many developers can get by with just a linear file format. A grid speaks for itself, with or without run-length encoding, and objects can be spot-placed with coordinate pairs (or triplets). Unfortunately, many games have trickier design formats. Like these:

  1. Doom. This and other FPS games geometrically organize the points, lines, and textures. But when it comes to linking all these objects together, you’ll need a system to “compile” them into something usable before a game can be played.
  2. Abuse. Not as well-known as Doom, but still worth a mention. Abuse is a very curious beast because LISP is used to drive almost all parts of the gameplay. What is LISP? It’s a linked-list based language, one you’re likely to encounter only in grad-level computer science. Each object, each enemy, etc. has one or more “links” to another object or enemy. Pretty open-ended!
  3. Diablo. This game, and its sequel, Diablo II, have dynamic level design. This means you don’t just have a level grid or spot-placements of objects: you have patterns, probabilities, and schemes determining what a level “might” look like. Levels are mixed in a similar fashion to Nethack or Rogue, which are text-based predecessor games that influenced Diablo’s creators significantly.

Questions to ask: how do you store links and relationships between objects? How do such relationships shape the data structures and storage formats themselves? How much work must be done in the construction of the levels versus the game engine’s actual setup process?

For credibility’s sake, I have no choice but to answer the above questions myself. I’m coming out with a new game soon, called Brian’s Journey. This uses a new game engine, which, at the core, is just a platform-independent graphical wrapper around the BAR engine. To design a level in this game, you’ll need two files: a room definition file and a shape interpretation file.

Text or binary? How about both? This is a profound “gotcha” for game developers. People care immensely about the end product (the game), but the path to the end product can be impossibly bumpy. Do you make text files, which means you use just a text editor, saving time, but perhaps making visualization harder? And making a tricky text-to-binary conversion part of the engine? Or do you pack everything in binary, forcing you to construct a complex editor that few people might ever use, and even fewer like using? Giving you the advantage, perhaps, of less pre-map processing when the level is actually played?

Thanks to BARfly, you can actually have both. Here’s what the shape interpretation file looks like for Brian’s Journey:

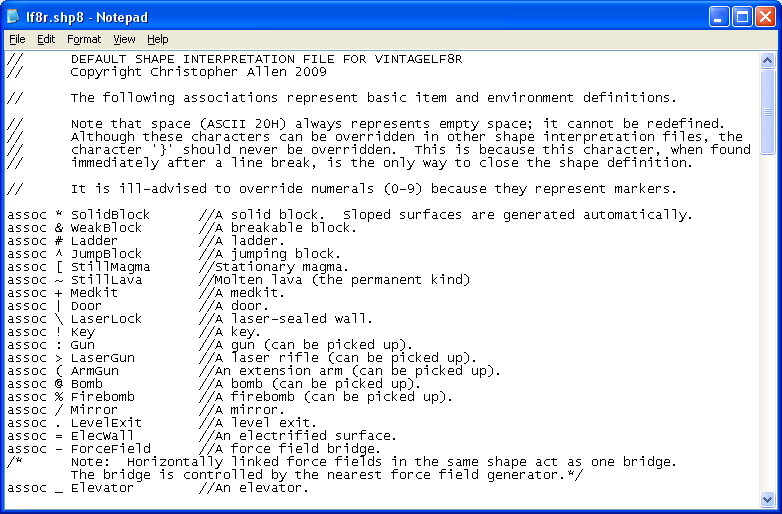

Shape file (text)

Looks kind of like source code. In a manner of speaking, it is. Now look at what happens when BARfly loads it:

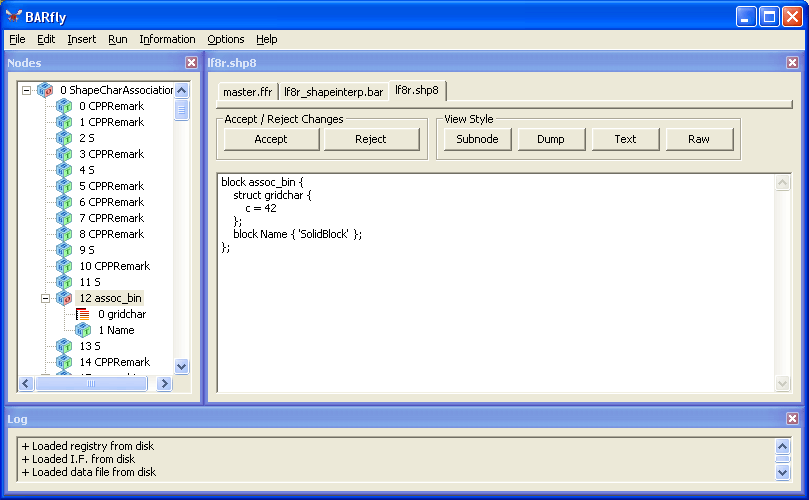

Shape file (BARfly)

Awesome. Everything’s a node. But do we really want to cycle through all that filler syntax to get at the associations we need? After running the I.F. function “Normalize,” the data looks like this:

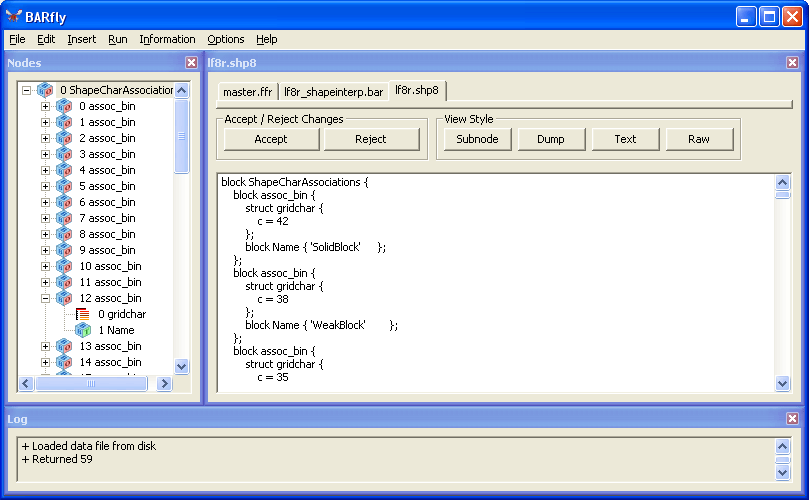

Shape file (final)

This function strips out comments and whitespace and gives us just name-value pairs! Architecturally, a program won’t have any trouble accessing this vectored data. Here’s my actual game engine code that loads a shape interpretation file:

//Load interface to shape file.
sh8 = i.Create_BAR(”lf8r_shapeinterp.bar”);
if (!sh8) return 1;

//Load file.
if (sh8->Load(filename) < 0) return 2;

//Normalize (get rid of extra components).
assoc_count = sh8->Function_Call_L(”ShapeCharAssociations.Normalize”);

Not many lines, huh? With so much of the parsing and conversion done in the I.F., the game developer is free to keep the game’s business logic pegged to architecture, rather than low-level parsing.

Okay, great. But that was the easy part. What about the room definition file format? Here’s an snippet of a room definition file:

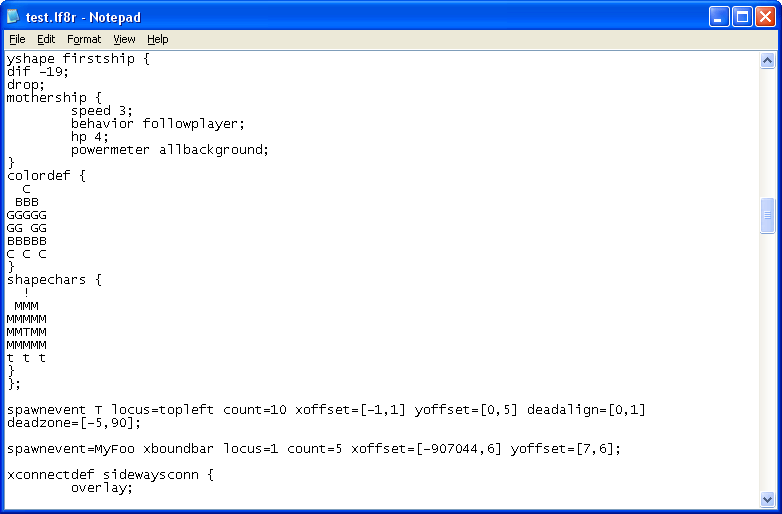

Room file (text)

Quite complex, indeed. The room definition has some parts ordered and some parts random–taking the best principles from Nethack, Diablo, Kroz, Vintage Hyperactive, and a variety of static level design formats. And because it’s text-based, you won’t need to design rooms in an editor (although you can later). Loading in BARfly gives you the following:

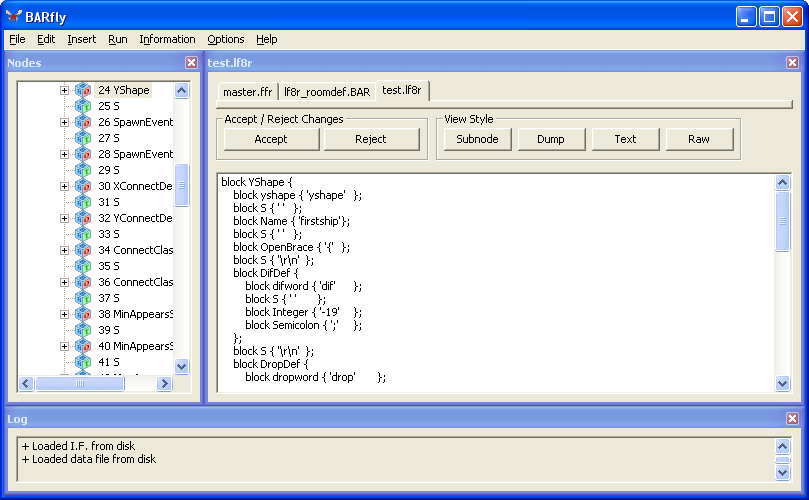

Room file (BARfly)

Do we have normalization I.F. functions here, too? We do. We run first Assimilate_Binary_Style, which removes comments, whitespace, etc…

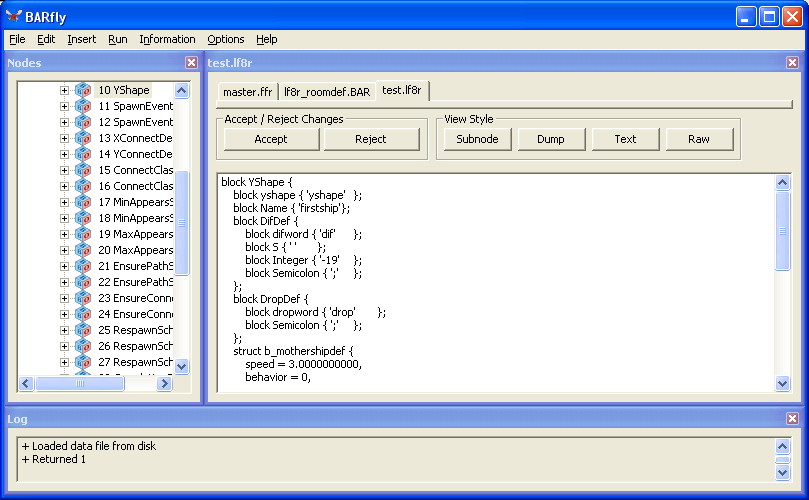

Room file (intermediate)

…and then Normalize, which translates the remaining text-based nodes to binary-based nodes.

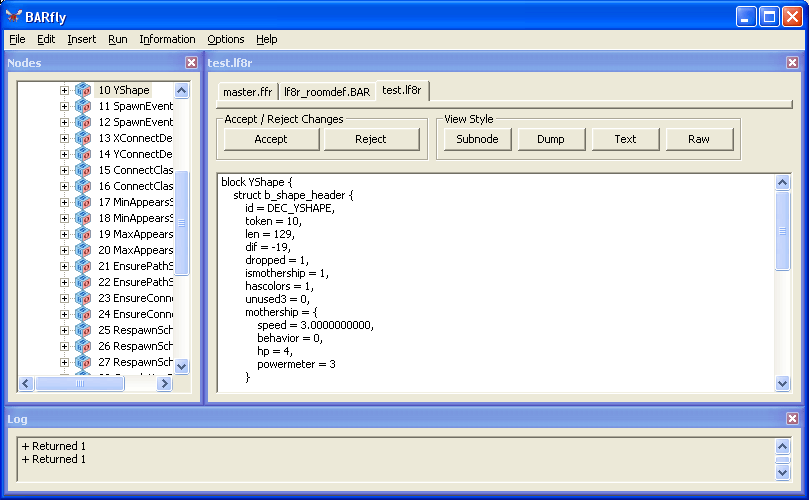

Room file (final)

Before, everything was a text field. Now, everything is a binary structure. If you save this file and reload it, it stays a binary file!

This is a rather novel method, from a software architect’s perspective, when translating text into binary. Traditionally, an architect will need to store text and binary fields separately, forcing a kind of “double vision” to develop. On one side you have your human-readable text, and on the other side you have your binary structures and relationships, which require their own separate architectures for processing.

But with BARfly, you can implement and test all the parsing and conversion logic without ever having to make the video game that uses it (I haven’t yet). There is no “dual architecture.” There is only one. Rather than throw away the source, you preserve the physical relationships of the nodes, and gradually “nibble around the edges” of the text architecture until it becomes a binary format.

Because the I.F for the room definition files does all the heavy lifting, the game engine only needs to deal with the binary format. Compilation isn’t just implicit as part of the level’s load process: it’s totally invisible to the game’s architecture!

Some of you sharp developers might have started to wonder what this means for games that would like to have the ability to read other games’ file formats. Currently, it’s not worth it, because you’d need to invest in a whole separate library of code devoted to reading just that other format. But if the architecture is pre-built into its own BAR implementation file? You’d just need to distribute that I.F., nothing more.
